RAAYOO

L002 NTSC Backup Camera

L002 NTSC Backup Camera

$18.99 USD
$24.99 USD $18.99 USD
Sale Sold out
Shipping calculated at checkout.
BUY ON AMAZON
  • LATEST 6pcs FULL glasses large-aperture optical system,
  • support IP69 waterproof IP rate. It designed with fully sealed glue filling craft,

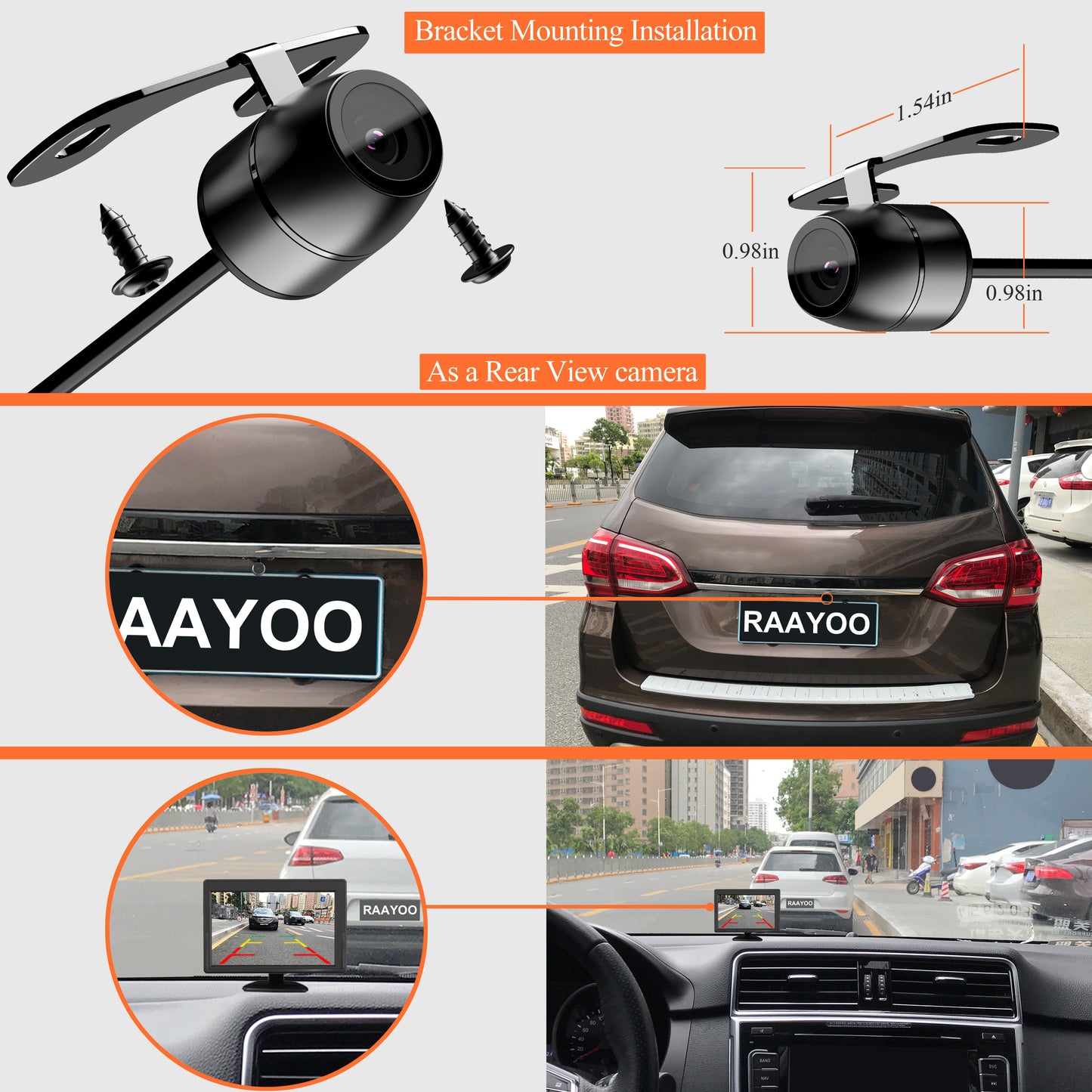

  • Comes with 2 brackets supporting 2 installation options, bracket mounting or 18.5mm flush mounting.
  • Built in 2 multifunctional switching loops, default setting is rear view with guide lines.
  • Universal for most vehicles, such as cars/trucks/trailers/RVs/vans/SUVs/campers and so on, effectively avoiding any blind spots on your vehicles
View full details

As a professional supplier of top-notch OEM&ODM vehicle backup Cameras , RAAYOO aims to only provide better backup cameras at a lower priice. We go to great lengths to research and improve our products all the time. And we believe that customer experience counts far more than short-term profits, so we make concerted efforts to design, manufacture, and improve our products and services in an innovative and responsible fashion.

RAAYOO L002 12V/24V back up camera is a universal backup camera for cars,trucks,RVs,pickups with R-CA video input connector, it support flush mount installation or bracket mount installation, HD high clear no distortion image, starlight level night vision, reliable IP69 rating waterproof level and horizontal 170 degrees wide view angle.

If connect this RAAYOO L002 Reverse Camera to a Factory Radio, please separately order a suited Harness & Programmer to complete installation, because different Radio need different Harness & Programmer to work together.

Before wiring, if there is no image on the screen, in addition to checking the camera, please also check the display settings. You can use other devices with RCA interfaces (such as a television) to check whether the camera is working properly.

2 Important Wires/Loops Control Design:

RAAYOO L002 vehicle backup camera with 2 small wires/Loops.

*Default setting is rear view with guide lines

*Cut the Green loop: cancel the guide line; Cut the White loop: convert rear view to front view.

Important Notes: Please power off the vehicle and power on again after you cut the small loops, then the image should be converted successfully. Please feel free to let us know if your image cannot converted successfully.

L002 Backup Cameras Installation

1.Find a proper location to mount this reverse camera.

2.Connect the power wire of camera to your reversing light, postive to reversing light +, negative to revesing light - or ground.

3.Connect the video cable to the head unit of your vehilce. Cable A connect with Cable B, Cable C connect to reversing light +.

*Wiring connection is the most important part of making the camera work, please make sure all of connection is tight to prevent the camera from not working or poor contact.

Support Any Car Stereo with Standrad R-CA Video Input

Works with your head units or aftermarket LCD/TFT displays with standard R-CA video input, 12V/24V working Voltage, Please check if your display support R-CA video input before make a order.

Parking Safely

It is difficult to park without a rear view camera even though you are an experienced driver, we cannot see all of the area behind of our vehicles. With this 170° large Viewing angle reverse camera, you can see clearly everything at the back of your car and quickly and safely park you car well.

Drill Bit Included

Equipped with 18.5mm high speed steel drill bit, special grinding process and high strength matrix, strong piercing ability, sharp and durable, easy to drill a hole on the bumper.
